IDT8P34S1204I

1:4 LVDS Output 1.8V Fanout Buffer

IDT8P34S1204I Features

* Four low skew, low additive jitter LVDS output pairs

* Two selectable, differential clock input pairs

* Differential CLK, nCLK pairs can accept the following differential input levels

IDT8P34S1204I General Description

The IDT8P34S1204I is a high-performance differential LVDS fanout buffer. The device is designed for the fanout of high-frequency, very low additive phase-noise clock and data signals. The IDT8P34S1204I is characterized to operate from a 1.8V power supply. Guaranteed low output-to-output and part-to-.

IDT8P34S1204I Datasheet (328.78 KB)

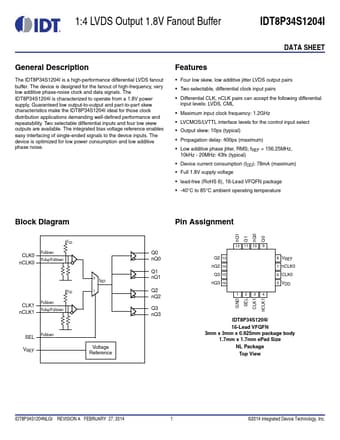

Preview of IDT8P34S1204I PDF

Datasheet Details

Part number:

IDT8P34S1204I

Manufacturer:

IDT

File Size:

328.78 KB

Description:

1:4 lvds output 1.8v fanout buffer.
