IDTF2258NLGK Datasheet, Attenuator, IDT

IDTF2258NLGK Features

  • Attenuator
  • Low Insertion Loss: 1.4 dB @ 2000 MHz
  • Typical / Min IIP3: 65 dBm / 47 dBm
  • Typical / Min IIP2: 95 dBm / 87 dBm
  • 33.6 dB Attenuation Range

PDF File Details

Part number:

IDTF2258NLGK

Manufacturer:

IDT

File Size:

1.98MB

Download:

📄 Datasheet

Description:

Voltage variable rf attenuator. The F2258 is a low insertion loss Voltage Variable RF Attenuator (VVA) designed for a multitude of wireless and other RF applications

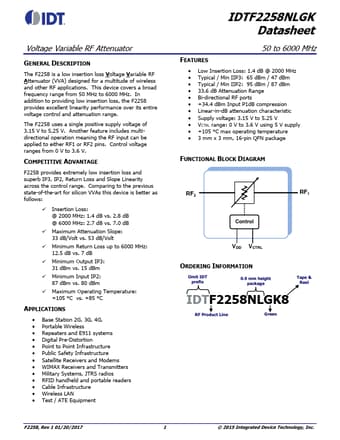

Datasheet Preview: IDTF2258NLGK 📥 Download PDF (1.98MB)
Page 2 of IDTF2258NLGK Page 3 of IDTF2258NLGK

IDTF2258NLGK Application

  • Applications This device covers a broad frequency range from 50 MHz to 6000 MHz. In addition to providing low insertion loss, the F2258 provides ex
