IDTF2258NLGK8, IDTF2258NLGK - Voltage Variable RF Attenuator

IDTF2258NLGK8 Description

Voltage Variable RF Attenuator GENERAL .
The F2258 is a low insertion loss Voltage Variable RF Attenuator (VVA) designed for a multitude of wireless and other RF applications.

IDTF2258NLGK8 Features

* Low Insertion Loss: 1.4 dB @ 2000 MHz
* Typical / Min IIP3: 65 dBm / 47 dBm
* Typical / Min IIP2: 95 dBm / 87 dBm
* 33.6 dB Attenuation Range
* Bi-directional RF ports
* +34.4 dBm Input P1dB compression
* Linear-in-dB attenuation characteristic
* Supply voltage: 3.1

IDTF2258NLGK8 Applications

* This device covers a broad frequency range from 50 MHz to 6000 MHz. In addition to providing low insertion loss, the F2258 provides excellent linearity performance over its entire voltage control and attenuation range. The F2258 uses a single positive supply voltage of 3.15 V to 5.25 V. Another fea

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: IDTF2258NLGK8, IDTF2258NLGK. Please refer to the document for exact specifications by model.

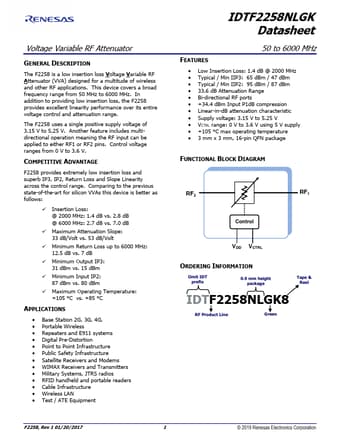

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
IDTF2258NLGK8, IDTF2258NLGK
Manufacturer
Renesas ↗
File Size
2.23 MB
Datasheet
IDTF2258NLGK-Renesas.pdf
Description
Voltage Variable RF Attenuator
Note
This datasheet PDF includes multiple part numbers: IDTF2258NLGK8, IDTF2258NLGK.
Please refer to the document for exact specifications by model.
