IDTF2255NLGK8, IDTF2255 - Voltage Variable RF Attenuator

IDTF2255NLGK8 Description

Voltage Variable RF Attenuator GENERAL .
The IDTF2255 is a low insertion loss Voltage Variable RF Attenuator (VVA) designed for a multitude of wireless and other RF applications.

IDTF2255NLGK8 Features

* include the VMODE pin allowing either positive or negative voltage control slope vs attenuation and multi-directional operation meaning the RF input can be applied to either RF1 or RF2 pins. Control voltage ranges from 0V to 3.6V using either positive or negative control voltage slope. COMPETITIVE A

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: IDTF2255NLGK8, IDTF2255. Please refer to the document for exact specifications by model.

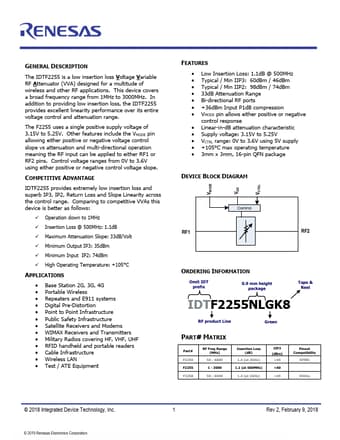

datasheet Preview Page 2 datasheet Preview Page 3
