IDTF2258, IDTF2258NLGK Datasheet - Renesas

IDTF2258 Voltage Variable RF Attenuator

The F2258 is a low insertion loss Voltage Variable RF Attenuator (VVA) designed for a multitude of wireless and other RF applications. This device covers a broad frequency range from 50 MHz to 6000 MHz. In addition to providing low insertion loss, the F2258 provides excellent linearity performance o.

IDTF2258 Features

* Low Insertion Loss: 1.4 dB @ 2000 MHz

* Typical / Min IIP3: 65 dBm / 47 dBm

* Typical / Min IIP2: 95 dBm / 87 dBm

* 33.6 dB Attenuation Range

* Bi-directional RF ports

* +34.4 dBm Input P1dB compression

* Linear-in-dB attenuation characteristic

* Supply voltage: 3.1

IDTF2258NLGK-Renesas.pdf

This datasheet PDF includes multiple part numbers: IDTF2258, IDTF2258NLGK. Please refer to the document for exact specifications by model.

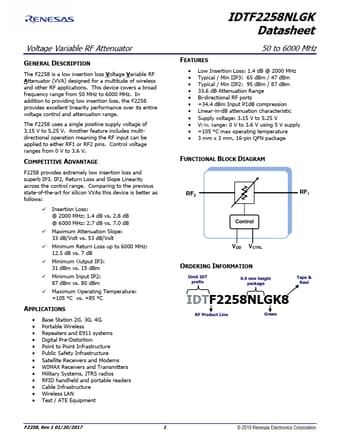

IDTF2258 Datasheet Preview Page 2 IDTF2258 Datasheet Preview Page 3

Datasheet Details

Part number:

IDTF2258, IDTF2258NLGK

Manufacturer:

Renesas ↗

File Size:

2.23 MB

Description:

Voltage variable rf attenuator.

Note:

This datasheet PDF includes multiple part numbers: IDTF2258, IDTF2258NLGK.
Please refer to the document for exact specifications by model.
