IL5009 Datasheet, Amplifier, IK Semiconductor

IL5009 Features

  • Amplifier
  • Operating supply voltage range : Vcc = 1.5V ~ 5.0V
  • Recommended operating supply voltage : Vcc = 3V
  • Low quiescent : Icc = 3.9mA
  • Package is compact

PDF File Details

Part number:

IL5009

Manufacturer:

IK Semiconductor

File Size:

197.04kb

Download:

📄 Datasheet

Description:

Speaker amplifier.

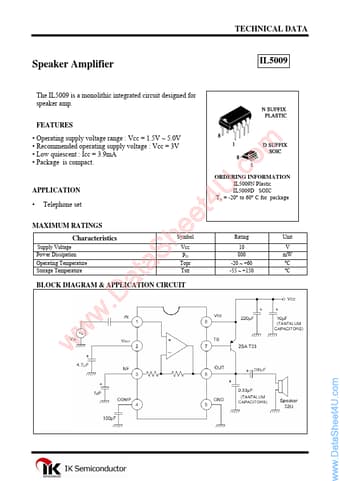

Datasheet Preview: IL5009 📥 Download PDF (197.04kb)
Page 2 of IL5009 Page 3 of IL5009
