IL5 Datasheet - Siemens Semiconductor Group

PHOTOTRANSISTOR OPTOCOUPLER

IL5 Features

* Current Transfer Ratio at IF=10 mA IL1, 20% Min. IL2, 100% Min. IL5, 50% Min.

* High Collector-Emitter Voltage IL1

* BVCEO=50 V IL2, IL5

* BVCEO=70 V

* Field-Effect Stable by TRansparent IOn Shield (TRIOS)

* Double Molded Package Offers Isolation Tes

IL5 General Description

The IL1/2/5 are optically coupled isolated pairs employing GaAs infrared LEDs and silicon NPN phototransistor. Signal information, including a DC level, can be transmitted by the drive while maintaining a high degree of electrical isolation between input and output. The IL1/2/5 are especially design.

IL5 Datasheet (81.36 KB)

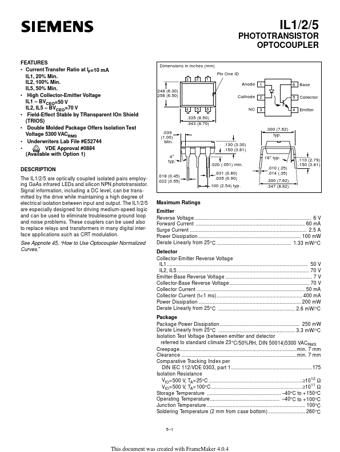

Preview of IL5 PDF

Datasheet Details

Part number:

IL5

Manufacturer:

Siemens Semiconductor Group

File Size:

81.36 KB

Description:

Phototransistor optocoupler.
