IL55

PHOTODARLINGTON OPTOCOUPLER

IL55 Features

* Current Transfer Ratio IL/ILD/ILQ30/55, 100% min. IL/ILD/ILQ31, 200% min.

* 125 mA Load Current Rating

* Fast Rise Time, 10 µS

* Fast Fall Time, 35 µS

* Single, Dual and Quad Channel

* Solid State Reliability

* Standard DIP Packages

IL55 General Description

The IL30/31/55, ILD30/31/55, and ILQ30/31/55 are optically coupled isolators wih Gallium Arsenide infrared emitters and silicon photodarlington sensors. Switching can be achieved while maintaining a high degree of isolation between driving and load circuits, with no crosstalk between channels. These.

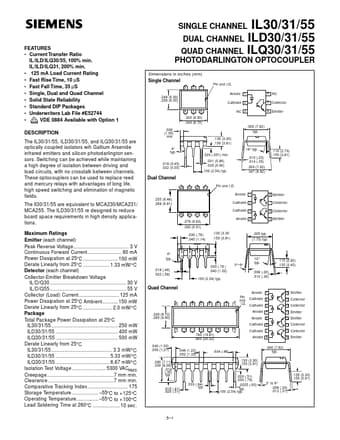

IL55 Datasheet (63.85 KB)
