IL56B

Optocoupler

Vishay Siliconix

IL56B Features

* High collector-emitter breakdown voltage, 80 V minimum

* High isolation resistance, 1011 Ω typical

* Standard plastic DIP Package

* No base terminal connection for improved common mode interface immunity

* Lead-free component

* Component in accordanc

IL56B General Description

The IL5xB and MOC8021 are optically coupled isolators with a gallium arsenide infrared LED and a silicon photodarlington sensor. Switching can be achieved while maintaining a high degree of isolation between driving and load circuits. These optocouplers can be For additional information on the avai.

IL56B Datasheet (115.47 KB)

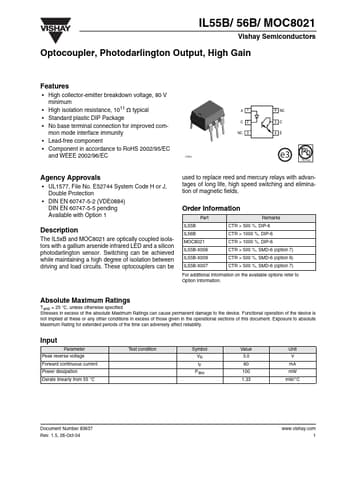

IL56B Datasheet Preview — Preview of IL56B PDF

Datasheet Details

Part number:

IL56B

Manufacturer:

Vishay ↗ Siliconix

File Size:

115.47 KB

Description:

Optocoupler.
