IL55B

PHOTODARLINGTON OPTOCOUPLER

IL55B Features

* High Collector-Emitter Breakdown Voltage

* 80 V minimum

* High Isolation Resistance, 1011 W Typical

* Standard Plastic DIP Package

* Underwriters Lab File #E52744 V D E

* VDE 0884 Available with Option 1 DESCRIPTION The IL55B is an optically coupled i

IL55B General Description

The IL55B is an optically coupled isolator with a Gallium Arsenide infrared LED and a silicon photodarlington sensor. Switching can be achieved while maintaining a high degree of isolation between driving and load circuits. These optocouplers can be used to replace reed and mercury relays with advan.

IL55B Datasheet (51.19 KB)

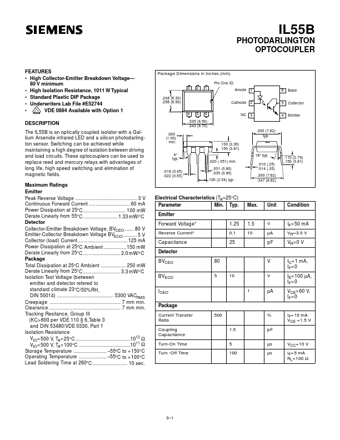

Preview of IL55B PDF

Datasheet Details

Part number:

IL55B

Manufacturer:

Siemens Semiconductor Group

File Size:

51.19 KB

Description:

Photodarlington optocoupler.
