IL5851 Datasheet - IK Semiconductor

Pulse Dialer with Redial

IL5851 Features

* required for implementing a pulse dialer with 32 digit redial.

* Wide operating voltage range (2.0~6.0V)

* Low power dissipation

* Use either a standard 2 of 7 matrix keyboard with negative true common or the inexpensive form A-type keyboard

* Make/Break ratio can be

IL5851 General Description

NAME VCC PIN 1 Positive supply pin. The voltage on this pin is measured relative to Pin 6 and is supplied from a 150µA current source. This voltage should be regulated to less than 6.0 volts using on external form or regulation. VREF 2 The VREF output provides reference voltage that tracks internal .

IL5851 Datasheet (276.89 KB)

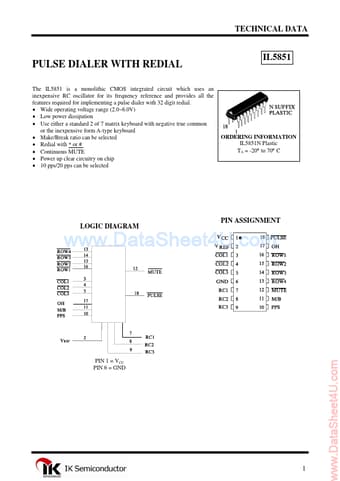

IL5851 Datasheet Preview — Preview of IL5851 PDF

Datasheet Details

Part number:

IL5851

Manufacturer:

IK Semiconductor

File Size:

276.89 KB

Description:

Pulse dialer with redial.
TECHNICAL DATA PULSE DIALER WITH REDIAL The IL5851 is a monolithic CMOS integrated circuit which uses an inexpensive RC oscillator for its frequency .
