ILX75176

Slew-Rate-Limited RS-485/RS-422 Transceivers

ILX75176 Features

* Device ILX75176N ILX75176D ILX75176DT Operating Temperature Range TA = 0 to 70 C Package DIP8 SOP8 SOP8 Shipping Tube Tube Tape & Reel

* Low Quiescent Current: 300µA

* -7V to +12V Common-Mode Input Voltage Range

* Three-State Outputs

* 50ns Propagation Delays, 5ns Skew

* H

ILX75176 General Description

The ILX75176 is low-power transceivers for RS-485 and RS- 422 communication. IC contains one driver and one receiver. The driver slew rates of the ILX75176 is not limited, allowing them to transmit up to 10 Mbps. These transceivers draw between 120µA and 500µA of supply current when unloaded or full.

ILX75176 Datasheet (428.20 KB)

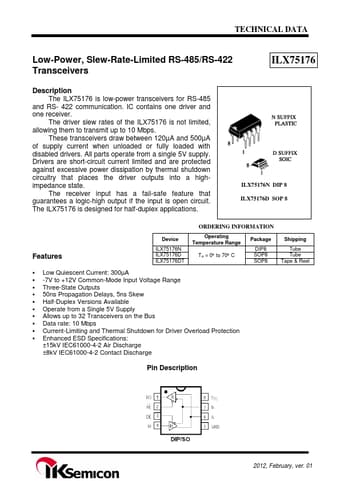

Preview of ILX75176 PDF

Datasheet Details

Part number:

ILX75176

Manufacturer:

IK Semiconductor

File Size:

428.20 KB

Description:

Slew-rate-limited rs-485/rs-422 transceivers.
