ILX751A

2048-pixel CCD Linear Sensor

Sony Corporation

ILX751A Features

* Number of effective pixels: 2048 pixels

* Pixel size: 14µm × 14µm (14µm pitch)

* Built-in timing generator and clock-drivers

* Shutter function

* Ultra low lag

* Maximum clock frequency: 5MHz Absolute Maximum Ratings

* Supply voltage VDD1 11

ILX751A General Description

The ILX751A is a reduction type CCD linear sensor designed for facsimile, image scanner and OCR use. This sensor reads B4 size documents at a density of 200DPI (Dot Per Inch). Featuring a shutter function, correspondences with the sensitivity correction, etc, is possible. A built-in timing generator.

ILX751A Datasheet (165.53 KB)

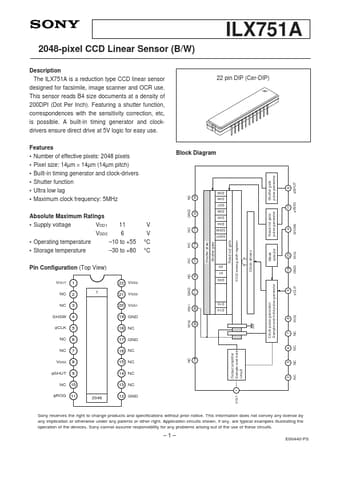

ILX751A Datasheet Preview — Preview of ILX751A PDF

Datasheet Details

Part number:

ILX751A

Manufacturer:

Sony Corporation

File Size:

165.53 KB

Description:

2048-pixel ccd linear sensor.
