IN74AC240 Datasheet - IK Semiconductor

IN74AC240 Octal Buffer/Line Driver

TECHNICAL DATA IN74AC240 Octal 3-State Inverting Buffer/Line Driver/Line Receiver High-Speed Silicon-Gate CMOS The IN74AC240 is identical in pinout to the LS/ALS240, HC/HCT240. The device inputs are compatible with standard CMOS outputs; with pullup resistors, they are compatible with LS/ALSTTL outputs. This octal inverting buffer/line driver/line receiver is designed to be used with 3-state memory address drivers, clock drivers, and other busoriented systems. The device has inverting outputs .

IN74AC240 Datasheet (288.90 KB)

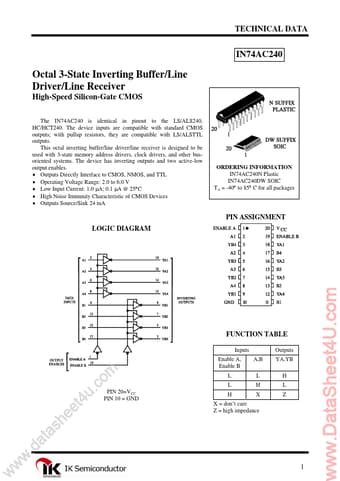

Preview of IN74AC240 PDF

Datasheet Details

Part number:

IN74AC240

Manufacturer:

IK Semiconductor

File Size:

288.90 KB

Description:

Octal buffer/line driver.
