IN74AC20 Datasheet, Gate, IK Semiconductor

PDF File Details

Part number:

IN74AC20

Manufacturer:

IK Semiconductor

File Size:

225.67kb

Download:

📄 Datasheet

Description:

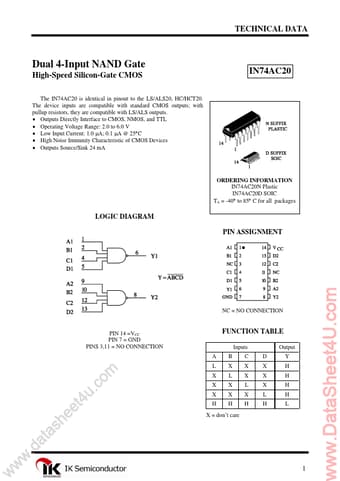

Dual 4-input nand gate.

IN74AC20 Application

• Applications of any voltage higher than maximum rated voltages to this high-impedance circuit. For proper operation, VIN and VOUT should be constrai
