IN74AC251 Datasheet - IK Semiconductor

IN74AC251 8-1 Data Selector/Multiplexer

TECHNICAL DATA IN74AC251 8-Input Data Selector/Multiplexer with 3-State Outputs High-Speed Silicon-Gate CMOS The IN74AC251 is identical in pinout to the LS/ALS251, HC/HCT251. The device inputs are compatible with standard CMOS outputs; with pullup resistors, they are compatible with LS/ALS outputs. The device selects one of the eight binary Data Inputs, as determined by the Address Inputs. The Output Enable pin must be at a low level for the selected data to appear at the outputs. If Output En.

IN74AC251 Datasheet (288.19 KB)

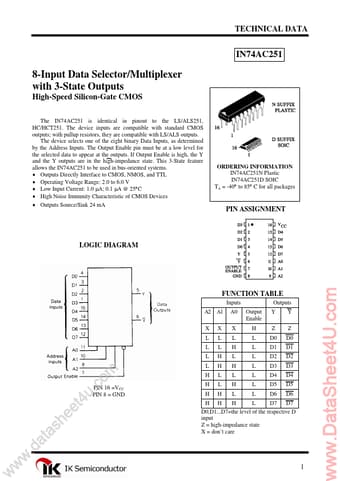

Preview of IN74AC251 PDF

Datasheet Details

Part number:

IN74AC251

Manufacturer:

IK Semiconductor

File Size:

288.19 KB

Description:

8-1 data selector/multiplexer.
