IN74LS04 Datasheet - IK Semiconductor

IN74LS04 Hex Inverter

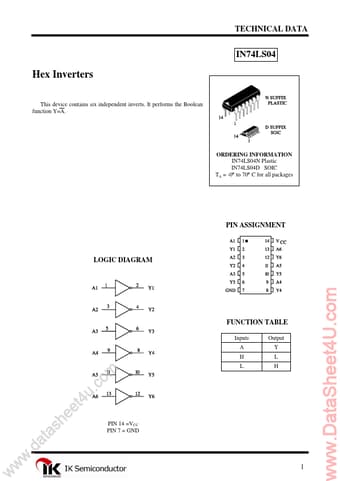

TECHNICAL DATA IN74LS04 Hex Inverters This device contains six independent inverts. It performs the Boolean function Y=A. ORDERING INFORMATION IN74LS04N Plastic IN74LS04D SOIC TA = -0° to 70° C for all packages PIN ASSIGNMENT LOGIC DIAGRAM FUNCTION TABLE Inputs A H L Output Y L H w w w .d e e h s a t a . u t4 m o c PIN 14 =VCC PIN 7 = GND 1 www.DataSheet4U.com IN74LS04 MAXIMUM RATINGS Symbol VCC VIN VOUT Tstg Parameter Supply Voltage Input Voltage Output Voltage Stor.

IN74LS04_IKSemiconductor.pdf

Preview of IN74LS04 PDF
IN74LS04 Datasheet Preview Page 2 IN74LS04 Datasheet Preview Page 3

Datasheet Details

Part number:

IN74LS04

Manufacturer:

IK Semiconductor

File Size:

215.78 KB

Description:

Hex inverter.
