IN74LS161, 4-Bit Binary Counter

TECHNICAL DATA Synchronous 4 Bit Counters; Binary, Direct Reset This synchronous, presettable counter .

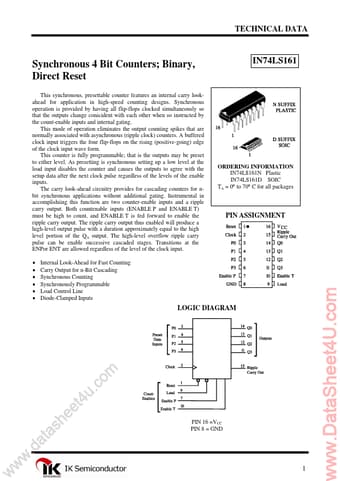

datasheet Preview Page 1 from Datasheet4u.com

IN74LS161_IKSemiconductor.pdf

IN74LS161 Datasheet Preview — Preview of IN74LS161 PDF

Datasheet Details

Part number:

IN74LS161

Manufacturer:

IK Semiconductor

File Size:

348.73 KB

Description:

4-Bit Binary Counter

Applications

* without additional gating. Instrumental in accomplishiing this function are two counter-enable inputs and a ripple carry output. Both countenable inputs (ENABLE P and ENABLE T) must be high to count, and ENABLE T is fed forward to enable the ripple carry output. The ripple carry output thus enabled
