IN74LS164

8-Bit Parallel-Out Shift Register

IN74LS164 Features

* gated serial inputs and an asynchronous reset. The gated serial inputs (A and B) permit complete control over incoming data as a low at either (or both) input(s) inhibits entry of the new data and resets the first flip flop to the low level at the next clock pulse. A high level input enables the oth

IN74LS164 Datasheet (280.89 KB)

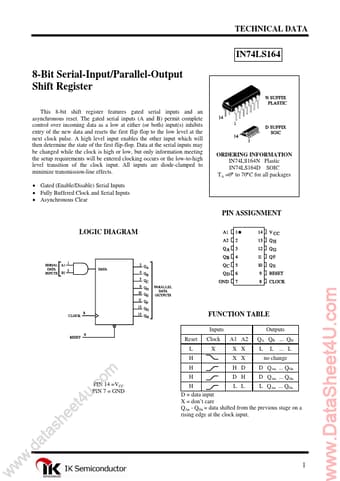

Preview of IN74LS164 PDF

Datasheet Details

Part number:

IN74LS164

Manufacturer:

IK Semiconductor

File Size:

280.89 KB

Description:

8-bit parallel-out shift register.
