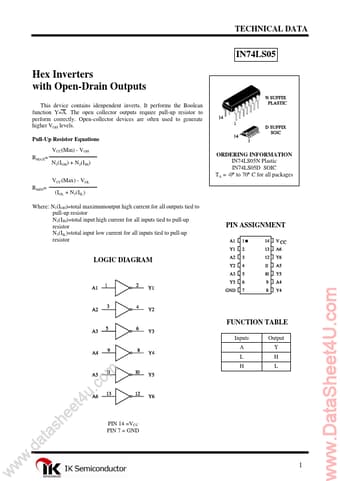

IN74LS05, Hex Inverter
TECHNICAL DATA IN74LS05 Hex Inverters with Open-Drain Outputs This device contains idenpendent inverts.
It performs the Boolean function Y=A.
The open collector outputs require pull-up resistor to perform correctly.
Open-collector devices are often used to generate higher VOH levels.
Pull-Up Resistor Equations VCC(Min) - VOH RMAX= N1(IOH) + N2(IIH) VCC(Max) - VOL RMIN= (IOL + N3(IIL) ORDERING INFORMATION IN74LS05N Plastic IN74LS05D SOIC TA = -0° to 70° C for all packages Where: N1(IOH)=total
