IN74LS07D Datasheet - ETC

IN74LS07D Hex Non-Inverted Buffers with Open- Collector Outputs

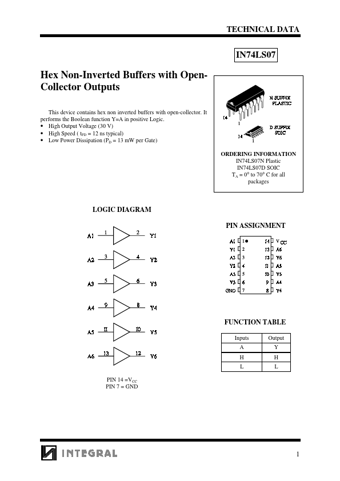

TECHNICAL DATA IN74LS07 Hex Non-Inverted Buffers with OpenCollector Outputs This device contains hex non inverted buffers with open-collector. It performs the Boolean function Y=A in positive Logic. High Output Voltage (30 V) High Speed ( tPD = 12 ns typical) Low Power Dissipation (PD = 13 mW per Gate) ORDERING INFORMATION IN74LS07N Plastic IN74LS07D SOIC TA = 0° to 70° C for all packages LOGIC DIAGRAM PIN ASSIGNMENT FUNCTION TABLE Inputs A H L PIN 14 =VCC PIN 7.

IN74LS07D Datasheet (98.55 KB)

Preview of IN74LS07D PDF
IN74LS07D Datasheet Preview Page 2 IN74LS07D Datasheet Preview Page 3

Datasheet Details

Part number:

IN74LS07D

Manufacturer:

ETC

File Size:

98.55 KB

Description:

Hex non-inverted buffers with open- collector outputs.
