IN74LS06 Datasheet - IK Semiconductor

IN74LS06 Hex Inverter/Buffer

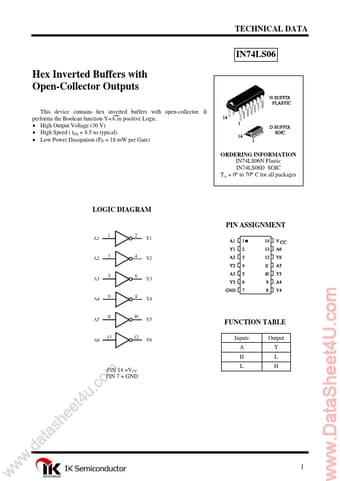

TECHNICAL DATA IN74LS06 Hex Inverted Buffers with Open-Collector Outputs This device contains hex inverted buffers with open-collector. It performs the Boolean function Y=A in positive Logic. High Output Voltage (30 V) High Speed ( tPD = 8.5 ns typical) Low Power Dissipation (PD = 18 mW per Gate) ORDERING INFORMATION IN74LS06N Plastic IN74LS06D SOIC TA = 0° to 70° C for all packages LOGIC DIAGRAM PIN ASSIGNMENT A1 1 2 Y1 A2 3 4 Y2 A3 5 6 Y3 A4 9 8 Y4 .

IN74LS06_IKSemiconductor.pdf

Preview of IN74LS06 PDF
IN74LS06 Datasheet Preview Page 2 IN74LS06 Datasheet Preview Page 3

Datasheet Details

Part number:

IN74LS06

Manufacturer:

IK Semiconductor

File Size:

204.25 KB

Description:

Hex inverter/buffer.
