IN74LV139 Datasheet - IK Semiconductor

IN74LV139 Dual 2-4 Decoder/Demultiplexer

TECHNICAL DATA Dual 2-to-4 line decoder/demultiplexer; inverting The IN74LV139 is a low-voltage Si-gate CMOS device and is pin and function compatible with 74HCT139. The74LV139 is dual 2-to-4 line decoder/demultiplexer . This device has two independent decoders, each accepting two binary weighted inputs (A0a,A0b and A1a,A1b) and providing four mutually exclusive active LOW outputs (nY0 to nY3). Each decoder has an active LOW enable input (nE) When nE is HIGH, every output is forced HIGH. The en.

IN74LV139 Datasheet (378.77 KB)

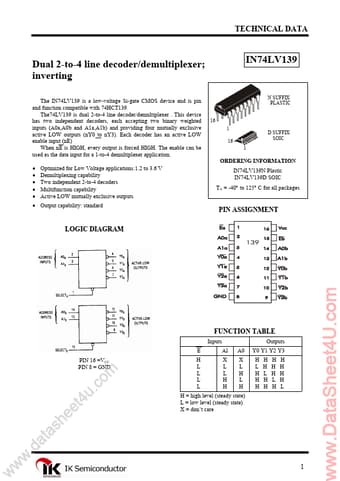

Preview of IN74LV139 PDF
IN74LV139 Datasheet Preview Page 2 IN74LV139 Datasheet Preview Page 3

Datasheet Details

Part number:

IN74LV139

Manufacturer:

IK Semiconductor

File Size:

378.77 KB

Description:

Dual 2-4 decoder/demultiplexer.
