IN74LV14 Hex Schmitt-Trigger Inverter

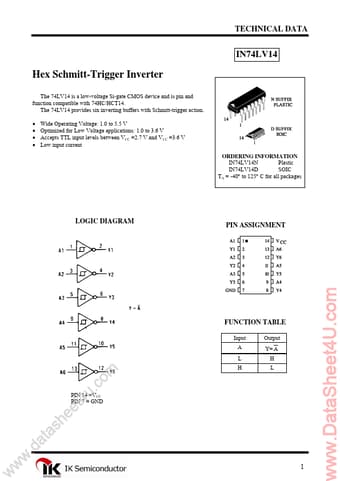

TECHNICAL DATA IN74LV14 Hex Schmitt-Trigger Inverter The 74LV14 is a low-voltage Si-gate CMOS device and is pin and function compatible with 74HC/HCT14. The 74LV14 provides six inverting buffers with Schmitt-trigger action. Wide Operating Voltage: 1.0 to 5.5 V Optimized for Low Voltage applications: 1.0 to 3.6 V Accepts TTL input levels between VCC =2.7 V and VCC =3.6 V Low input current ORDERING INFORMATION IN74LV14N Plastic IN74LV14D SOIC TA = -40° to .

IN74LV14_IKSemiconductor.pdf

Preview of IN74LV14 PDF
IN74LV14 Datasheet Preview Page 2 IN74LV14 Datasheet Preview Page 3

Datasheet Details

Part number:

IN74LV14

Manufacturer:

IK Semiconductor

File Size:

300.75 KB

Description:

Hex schmitt-trigger inverter.
