IN74LV164 Datasheet - IK Semiconductor

IN74LV164 8-Bit Serial-In Parallel-Out Shift Register

TECHNICAL DATA 8-BIT SERIAL-IN/PARALLEL-OUT SHIFT REGISTER The IN74LV164 is a low-voltage Si-gate CMOS device and is pin and function compatible with the IN74HC/HCT164. The IN74LV164 is an 8-bit edge-triggered shift register with serial data entry and an output from each of the eight stages. Data is entered serially through one of two inputs (DSA or DSB); either input can be used as an active HIGH enable for data entry through the other input. Both inputs must be connected together or an unused.

IN74LV164_IKSemiconductor.pdf

Preview of IN74LV164 PDF

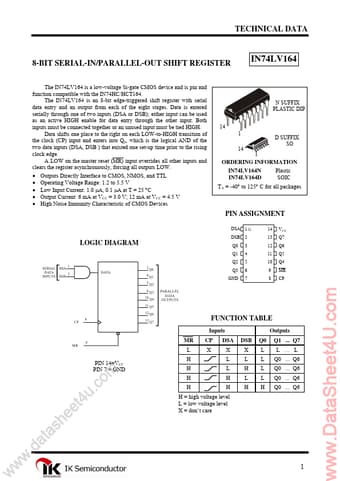

IN74LV164 Datasheet Preview Page 2 IN74LV164 Datasheet Preview Page 3

Datasheet Details

Part number:

IN74LV164

Manufacturer:

IK Semiconductor

File Size:

261.64 KB

Description:

8-bit serial-in parallel-out shift register.
