IN74LV00 Datasheet - IK Semiconductor

IN74LV00 Quad 2-Input NAND Gate

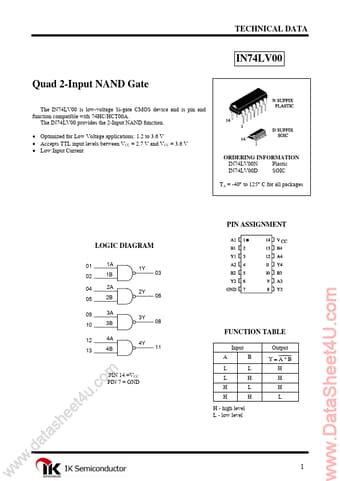

TECHNICAL DATA IN74LV00 Quad 2-Input NAND Gate The IN74LV00 is low-voltage Si-gate CMOS device and is pin and function compatible with 74HC/HCT00A. The IN74LV00 provides the 2-Input NAND function. Optimized for Low Voltage applications: 1.2 to 3.6 V Accepts TTL input levels between VCC = 2.7 V and VCC = 3.6 V Low Input Current ORDERING INFORMATION IN74LV00N Plastic IN74LV00D SOIC TA = -40° to 125° C for all packages PIN ASSIGNMENT LOGIC DIAGRAM 01 02 1A 1B 1Y 0.

IN74LV00_IKSemiconductor.pdf

Preview of IN74LV00 PDF
IN74LV00 Datasheet Preview Page 2 IN74LV00 Datasheet Preview Page 3

Datasheet Details

Part number:

IN74LV00

Manufacturer:

IK Semiconductor

File Size:

293.29 KB

Description:

Quad 2-input nand gate.
