IN74LV04 Datasheet - IK Semiconductor

IN74LV04 Hex Inverter

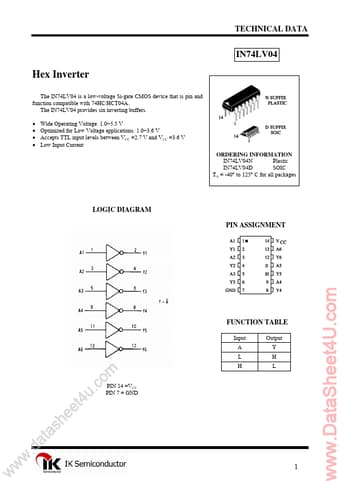

TECHNICAL DATA IN74LV04 Hex Inverter The IN74LV04 is a low-voltage Si-gate CMOS device that is pin and function compatible with 74HC/HCT04A. The IN74LV04 provides six inverting buffers. Wide Operating Voltage: 1.0÷5.5 V Optimized for Low Voltage applications: 1.0÷3.6 V Accepts TTL input levels between VCC =2.7 V and VCC =3.6 V Low Input Current ORDERING INFORMATION IN74LV04N Plastic IN74LV04D SOIC TA = -40° to 125° C for all packages LOGIC DIAGRAM PIN A.

IN74LV04_IKSemiconductor.pdf

Preview of IN74LV04 PDF
IN74LV04 Datasheet Preview Page 2 IN74LV04 Datasheet Preview Page 3

Datasheet Details

Part number:

IN74LV04

Manufacturer:

IK Semiconductor

File Size:

291.25 KB

Description:

Hex inverter.
