IN74LV08 Datasheet - IK Semiconductor

IN74LV08 Quad 2-Input AND Gate

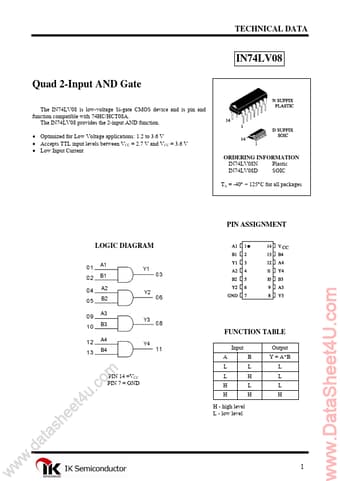

TECHNICAL DATA IN74LV08 Quad 2-Input AND Gate The IN74LV08 is low-voltage Si-gate CMOS device and is pin and function compatible with 74HC/HCT08A. The IN74LV08 provides the 2-input AND function. Optimized for Low Voltage applications: 1.2 to 3.6 V Accepts TTL input levels between VCC = 2.7 V and VCC = 3.6 V Low Input Current ORDERING INFORMATION IN74LV08N Plastic IN74LV08D SOIC TA = -40° ÷ 125°C for all packages PIN ASSIGNMENT LOGIC DIAGRAM A1 B1 Y2 Y1 B2 A3 B3 A.

IN74LV08 Datasheet (302.89 KB)

Preview of IN74LV08 PDF
IN74LV08 Datasheet Preview Page 2 IN74LV08 Datasheet Preview Page 3

Datasheet Details

Part number:

IN74LV08

Manufacturer:

IK Semiconductor

File Size:

302.89 KB

Description:

Quad 2-input and gate.
