2SA1006B PNP Transistor

2SA1006B Description

INCHANGE Semiconductor isc Silicon PNP Power Transistor 2SA1006B .
Good Linearity of hFE. High Collector-Emitter Breakdown Voltage- V(BR)CEO= -250Vdc (Min). Wide Area of Safe Operation. Complement to.

2SA1006B Applications

* Adudio frequency power amplifier
* High frequency power amplifier ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage -250 V VCEO Collector-Emitter Voltage -250 V VEBO Emitter-Base Voltage -5 V IC Collector Current-Continuous -1.5 A IC

📥 Download Datasheet

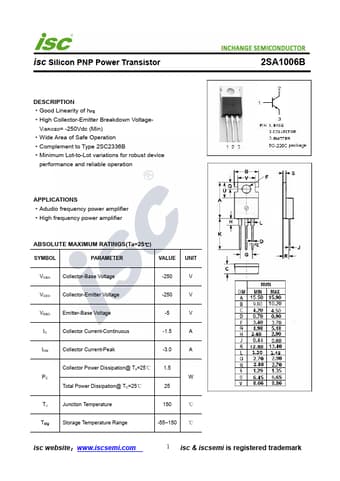

Preview of 2SA1006B PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
2SA1006B
Manufacturer
INCHANGE
File Size
322.75 KB
Datasheet
2SA1006B-INCHANGE.pdf
Description
PNP Transistor
