2SA635 - PNP Transistor

Product Overview

📥 Download Datasheet

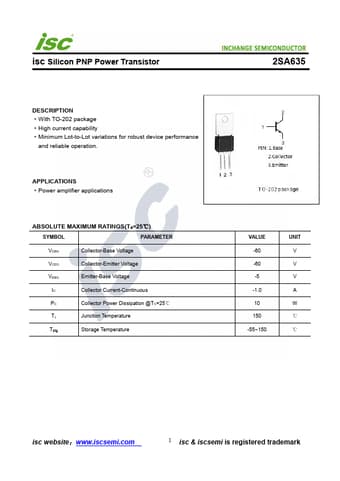

Datasheet preview – 2SA635

Datasheet Details

Part number 2SA635
Manufacturer INCHANGE
File Size 176.23 KB
Description PNP Transistor
Datasheet download datasheet 2SA635 Datasheet
Additional preview pages of the 2SA635 datasheet.

Product details

Description

With TO-202 package High current capability Minimum Lot-to-Lot variations for robust device performance and reliable operation.APPLICATIONS Power amplifier applications ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VCBO Collector-Base Voltage VCEO Collector-Emitter Voltage VEBO Emitter-Base Voltage IC Collector Current-Continuous PC Collector Power Dissipation @TC=25℃ TJ Junction Temperature Tstg Storage Temperature VALUE -60 -60 -5 -1.0 10 150 -55~150
