2SB1085 PNP Transistor

2SB1085 Description

isc Silicon PNP Power Transistor 2SB1085 .
Collector-Emitter Breakdown Voltage- : V(BR)CEO= -120V (Min). Wide Area of Safe Operation. Complement to Type 2SD1562. Minimum Lot-to.

2SB1085 Applications

* Designed for low frequency power amplifier applications. ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage -120 V VCEO Collector-Emitter Voltage -120 V VEBO Emitter-Base Voltage -5.0 V IC Collector Current-Continuous -1.5 A ICM Collect

📥 Download Datasheet

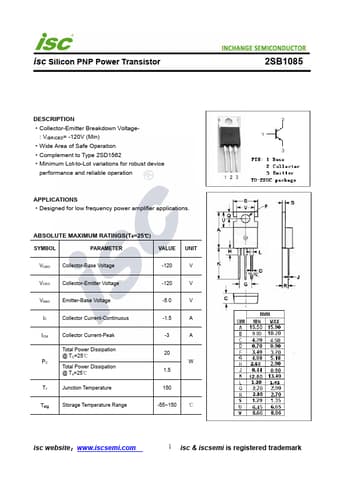

Preview of 2SB1085 PDF
datasheet Preview Page 2

Datasheet Details

Part number
2SB1085
Manufacturer
INCHANGE
File Size
212.93 KB
Datasheet
2SB1085-INCHANGE.pdf
Description
PNP Transistor
