2SB1223 - PNP Transistor

2SB1223 Description

isc Silicon PNP Darlington Power Transistor 2SB1223 .
High DC Current Gain- : hFE= 2000(Min)@ (VCE= -2V, IC= -2A). Large Current Capability and Wide ASO. Complement to Type 2SD1825. Mini.

2SB1223 Applications

* Designed for use in control of motor drivers, printer hammer drivers, and constant-voltage regulators. ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage -70 V VCEO Collector-Emitter Voltage -60 V VEBO Emitter-Base Voltage -6 V IC Collect

📥 Download Datasheet

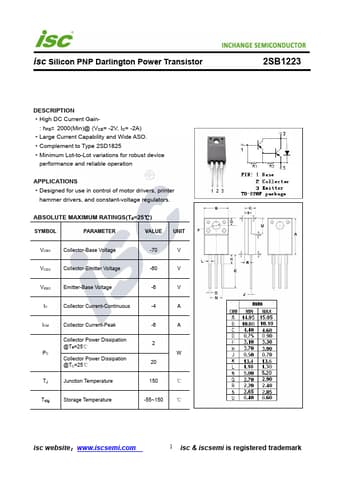

Preview of 2SB1223 PDF
datasheet Preview Page 2

Datasheet Details

Part number
2SB1223
Manufacturer
INCHANGE
File Size
207.15 KB
Datasheet
2SB1223-INCHANGE.pdf
Description
PNP Transistor
