2SB601 - PNP Transistor

2SB601 Description

isc Silicon PNP Darlington Power Transistor 2SB601 .
High DC Current Gain- : hFE = 2000(Min)@ IC= -3A. Collector-Emitter Sustaining Voltage- : VCEO(SUS) = -100V(Min). Low Collector-Emitter S.

2SB601 Applications

* Designed for use in low-frequency power amplifiers and low- speed switching applications.
* Ideal for use in direct drive from IC output for magnet drivers such as terminal equipment or cash registers. ABSOLUTE MAXIMUM RATINGS (Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base V

📥 Download Datasheet

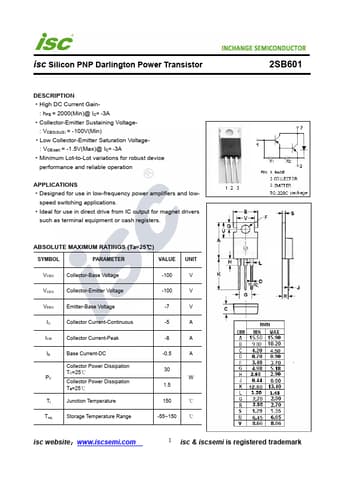

Preview of 2SB601 PDF
datasheet Preview Page 2

Datasheet Details

Part number
2SB601
Manufacturer
INCHANGE
File Size
214.99 KB
Datasheet
2SB601-INCHANGE.pdf
Description
PNP Transistor
