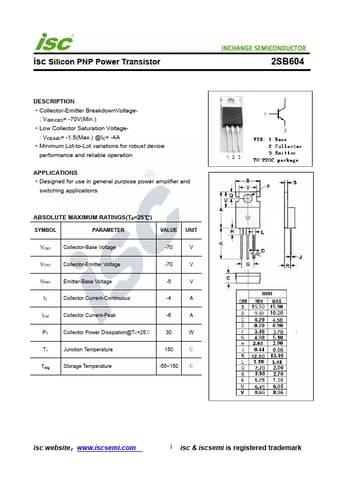

2SB604 Datasheet, Transistor, INCHANGE

PDF File Details

Part number:

2SB604

Manufacturer:

INCHANGE

File Size:

179.86kb

Download:

📄 Datasheet

Description:

Pnp transistor.

Collector-Emitter BreakdownVoltage- : V(BR)CEO= -70V(Min.)

Low Collector Saturation Voltage- : VCE(sat)= -1.5(Max.)

2SB604 Application

• Applications
• Designed for use in general purpose power amplifier and switching applications ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARA
