2SB612 Datasheet, Transistor, INCHANGE

PDF File Details

Part number:

2SB612

Manufacturer:

INCHANGE

File Size:

207.33kb

Download:

📄 Datasheet

Description:

Pnp transistor.

  • Collector-Emitter Breakdown Voltage- : V(BR)CEO= -140V(Min)
  • High Power Dissipation- : PC= 100W(Max)@TC=25℃

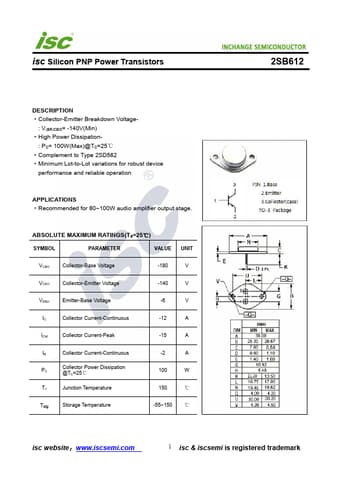

  • Datasheet Preview: 2SB612 📥 Download PDF (207.33kb)
    Page 2 of 2SB612

    2SB612 Application

    • Applications
    • Recommended for 80~100W audio amplifier output stage. ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO
