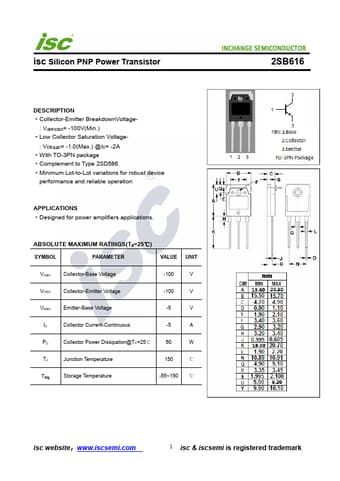

2SB616 Datasheet, Transistor, INCHANGE

PDF File Details

Part number:

2SB616

Manufacturer:

INCHANGE

File Size:

185.77kb

Download:

📄 Datasheet

Description:

Pnp transistor.

Collector-Emitter BreakdownVoltage- : V(BR)CEO= -100V(Min.)

Low Collector Saturation Voltage- : VCE(sat)= -1.0(Max.

2SB616 Application

• Applications
• Designed for power amplifiers applications. ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-
