2SC2690 - NPN Transistor

2SC2690 Description

isc Silicon NPN Power Transistor INCHANGE Semiconductor 2SC2690 .
High voltage and high fT. Complementary to 2SA1220 PNP transistor. 100% avalanche tested. Minimum Lot-to-Lot variations for robust de.

2SC2690 Applications

* The 2SC2690 is general purpose transistors designed For use in audio and radio frequency power amplifiers.
* Suitable for use in driver stage of 50 to 100W audio Amplifiers and output stage of TV vertical deflection circuit ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT V

📥 Download Datasheet

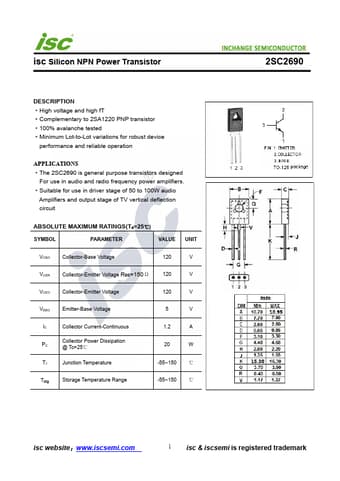

Preview of 2SC2690 PDF
datasheet Preview Page 2

Datasheet Details

Part number
2SC2690
Manufacturer
INCHANGE
File Size
192.86 KB
Datasheet
2SC2690-INCHANGE.pdf
Description
NPN Transistor
