2SC2827 - NPN Transistor

2SC2827 Description

isc Silicon NPN Power Transistor 2SC2827 .
Collector-Emitter Sustaining Voltage- : VCEO(SUS)= 400V(Min). Fast Switching Speed. Collector-Emitter Saturation Voltage- : VCE(sat)= 0.

2SC2827 Applications

* Designed for use in high-voltage,high-speed,power switching applications such as switching regulators, inverters, solenoid and relay drivers. ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE VCBO Collector-Base Voltage 500 VCEO Collector-Emitter Voltage 400 VEBO Emitter-Base

📥 Download Datasheet

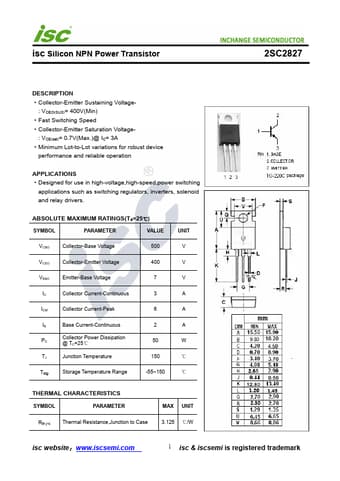

Preview of 2SC2827 PDF
datasheet Preview Page 2

Datasheet Details

Part number
2SC2827
Manufacturer
INCHANGE
File Size
191.66 KB
Datasheet
2SC2827-INCHANGE.pdf
Description
NPN Transistor
