2SC3894 - NPN Transistor

📥 Download Datasheet

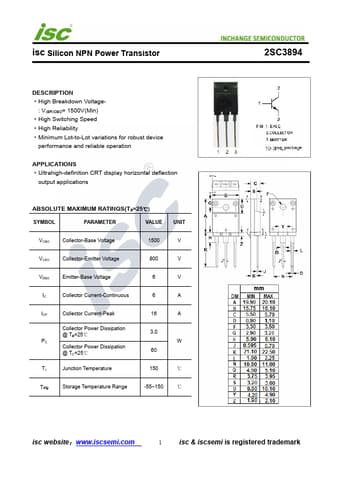

Preview of 2SC3894 PDF
datasheet Preview Page 2

Datasheet Details

Part number 2SC3894
Manufacturer INCHANGE
File Size 211.23 KB
Description NPN Transistor
Datasheet download datasheet 2SC3894-INCHANGE.pdf

2SC3894 Product details

Description

High Breakdown Voltage- : V(BR)CBO= 1500V(Min) High Switching Speed High Reliability Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS Ultrahigh-definition CRT display horizontal deflection output applications ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage 1500 V VCEO Collector-Emitter Voltage 800 V VEBO Emitter-Base Voltage 6 V IC Collector Current-Continuous 6 A
