2SD2065 - NPN Transistor

2SD2065 Description

isc Silicon NPN Power Transistor .
Collector-Emitter Breakdown Voltage- : V(BR)CEO= 140V(Min). Good Linearity of hFE. Wide Area of Safe Operation. Complement to Type 2S.

2SD2065 Applications

* Designed for high power amplifications. ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage 140 V VCEO Collector-Emitter Voltage 140 V VEBO Emitter-Base Voltage 5 V IC Collector Current-Continuous 7 A ICP Collector Current-Pulse Colle

📥 Download Datasheet

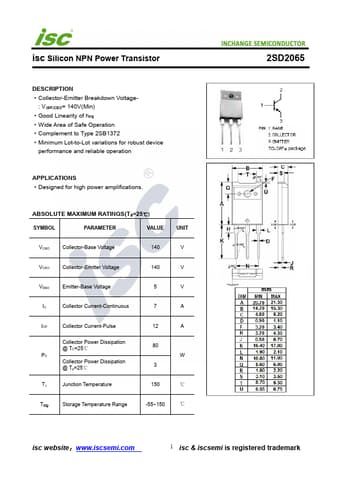

Preview of 2SD2065 PDF
datasheet Preview Page 2

Datasheet Details

Part number
2SD2065
Manufacturer
INCHANGE
File Size
195.31 KB
Datasheet
2SD2065-INCHANGE.pdf
Description
NPN Transistor
