2SD834 - NPN Transistor

2SD834 Description

isc Silicon NPN Darlington Power Transistor .
High DC Current Gain : hFE= 1500(Min) @ IC= 2A, VCE= 2V. Low Saturation Voltage- : VCE(sat)= 1. Wide Area of Safe Operati.

2SD834 Applications

* Electronic ignitor
* Relay& solenoid drivers
* Switching regulators
* Motor controls ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage 250 V VCEO Collector-Emitter Voltage 200 V VCEO(SUS) Collector-Emitter Voltage 180 V VEBO Emit

📥 Download Datasheet

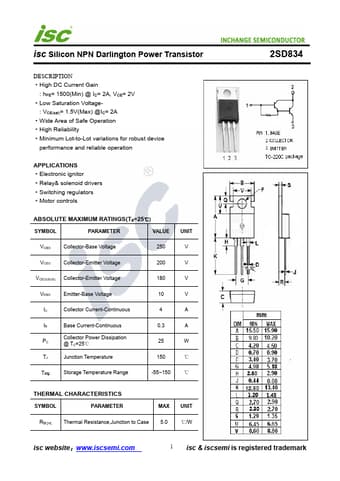

Preview of 2SD834 PDF
datasheet Preview Page 2

Datasheet Details

Part number
2SD834
Manufacturer
INCHANGE
File Size
210.36 KB
Datasheet
2SD834-INCHANGE.pdf
Description
NPN Transistor
