2SD836 Datasheet, Transistor, INCHANGE

PDF File Details

Part number:

2SD836

Manufacturer:

INCHANGE

File Size:

191.23kb

Download:

📄 Datasheet

Description:

Npn transistor.

  • High DC Current Gain- : hFE= 1000(Min.)@IC= 2A
  • High Switching Speed
  • Complement to Type 2SB750
  • Min

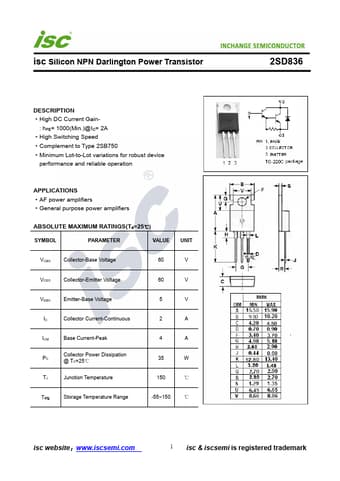

  • Datasheet Preview: 2SD836 📥 Download PDF (191.23kb)
    Page 2 of 2SD836 Page 3 of 2SD836

    2SD836 Application

    • Applications
    • AF power amplifiers
    • General purpose power amplifiers ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNI
