2SD972 Datasheet - INCHANGE

2SD972, NPN Transistor

INCHANGE Semiconductor isc Silicon NPN Darlington Power Transistor 2SD972 .
Collector-Emitter Breakdown Voltage- : V(BR)CEO = 50V(Min). High DC Current Gain. High Switching Speed. Wide Area of Safe Operation.

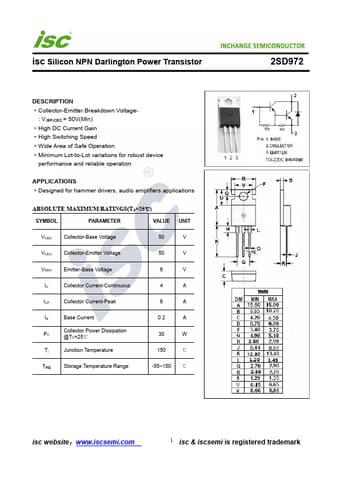

datasheet Preview Page 1 from Datasheet4u.com

2SD972-INCHANGE.pdf

2SD972 Datasheet Preview — Preview of 2SD972 PDF

Datasheet Details

Part number:

2SD972

Manufacturer:

INCHANGE

File Size:

198.04 KB

Description:

NPN Transistor

Applications

* Designed for hammer drivers, audio amplifiers applications ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage 50 V VCEO Collector-Emitter Voltage 50 V VEBO Emitter-Base Voltage 6 V IC Collector Current-Continuous 4 A ICP Collector Curre
