2SK2645, N-Channel MOSFET

isc N-Channel MOSFET Transistor 2SK2645 *.

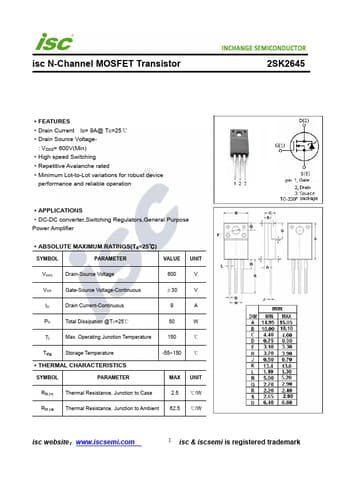

datasheet Preview Page 1 from Datasheet4u.com

2SK2645-INCHANGE.pdf

2SK2645 Datasheet Preview — Preview of 2SK2645 PDF

Datasheet Details

Part number:

2SK2645

Manufacturer:

INCHANGE

File Size:

220.42 KB

Description:

N-Channel MOSFET

Features

* Drain Current ID= 9A@ TC=25℃
* Drain Source Voltage- : VDSS= 600V(Min)
* High speed Switching
* Repetitive Avalanche rated
* Minimum Lot-to-Lot variations for robust device performance and reliable operation

Applications

* DC-DC converter,Switching Regulators,General Purpose Power Amplifier
* ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VDSS Drain-Source Voltage 600 V VGS Gate-Source Voltage-Continuous ±30 V ID Drain Current-Continuous 9 A PD Total Dissipation @TC=25℃ 50 W
