2SK2654 - N-Channel MOSFET

2SK2654 Description

isc N-Channel MOSFET Transistor .
Designed for use in switch mode power supplies and general purpose applications.

2SK2654 Features

* Drain Source Voltage- : VDSS= 900V(Min)
* Static Drain-Source On-Resistance : RDS(on) = 2Ω(Max)
* 100% avalanche tested

2SK2654 Applications

* ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VDSS Drain-Source Voltage 900 V VGS Gate-Source Voltage-Continuous ±30 V ID Drain Current-Continuous 8 A IDM Drain Current-Single Pluse 32 A PD Total Dissipation @TC=25℃ 150 W TJ Max. Operating Junction Temperat

📥 Download Datasheet

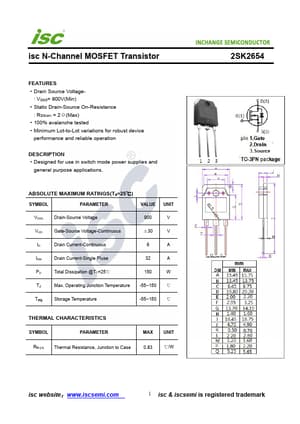

Preview of 2SK2654 PDF
datasheet Preview Page 2

Datasheet Details

Part number
2SK2654
Manufacturer
INCHANGE
File Size
252.50 KB
Datasheet
2SK2654-INCHANGE.pdf
Description
N-Channel MOSFET
