2STP535FP

NPN Transistor

2STP535FP General Description


*With TO-220F packaging
*Very high DC current gain
*Monolithic darlington transistor with integrated antiparallel collector-emitter diode
*Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS
*AC-DC motor control
*Electronic ignitio.

2STP535FP Datasheet (186.02 KB)

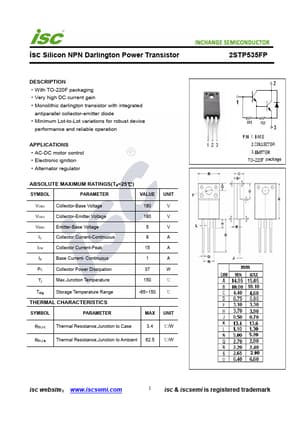

Preview of 2STP535FP PDF

Datasheet Details

Part number:

2STP535FP

Manufacturer:

INCHANGE

File Size:

186.02 KB

Description:

Npn transistor.
