2STW100 NPN Transistor

📥 Download Datasheet Datasheet Preview Page 1

Description

INCHANGE Semiconductor isc Silicon NPN Darlington Power Transistor 2STW100 .
With TO-3PN packaging. Very high DC current gain. Monolithic darlington transistor with integrated antiparallel collector-emitter diode.

📥 Download Datasheet

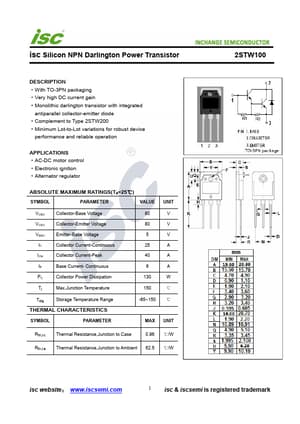

Preview of 2STW100 PDF
datasheet Preview Page 2

Datasheet Specifications

Part number
2STW100
Manufacturer
INCHANGE
File Size
196.71 KB
Datasheet
2STW100-INCHANGE.pdf
Description
NPN Transistor

Applications

* AC-DC motor control
* Electronic ignition
* Alternator regulator ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO VCEO VEBO IC ICM IB Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current-Continuous Collector Current-Peak Base Curr
