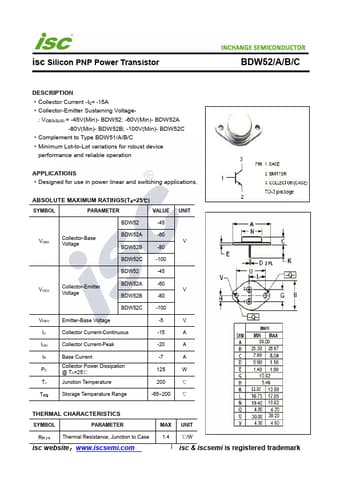

BDW52A Datasheet, Transistor, INCHANGE

PDF File Details

Part number:

BDW52A

Manufacturer:

INCHANGE

File Size:

210.56kb

Download:

📄 Datasheet

Description:

Silicon pnp power transistor.

Collector Current -IC= -15A

Collector-Emitter Sustaining Voltage- : VCEO(SUS) = -45V(Min)- BDW52; -60V(Min)- BDW52A

BDW52A Application

• Applications
• Designed for use in power linear and switching applications. ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT
