BDW52 - Bipolar PNP Device

📥 Download Datasheet

Datasheet preview – BDW52

Datasheet Details

Part number BDW52
Manufacturer Seme LAB
File Size 11.30 KB
Description Bipolar PNP Device
Datasheet download datasheet BDW52 Datasheet
Additional preview pages of the BDW52 datasheet.

📁 Similar Datasheet

  • BDW52 - Silicon PNP Power Transistor (INCHANGE)
  • BDW52A - Silicon PNP Power Transistor (INCHANGE)
  • BDW52B - Silicon PNP Power Transistor (INCHANGE)
  • BDW52C - Silicon PNP Power Transistor (INCHANGE)
  • BDW52C - SILICON POWER TRANSISTOR (SavantIC)
  • BDW51 - NPN Transistor (INCHANGE)
  • BDW51A - NPN Transistor (INCHANGE)
  • BDW51B - NPN Transistor (INCHANGE)
  • BDW51C - SILICON POWER TRANSISTOR (SavantIC)
  • BDW51C - NPN Transistor (INCHANGE)
Other Datasheets by Seme LAB

Full PDF Text Transcription

Click to expand full text

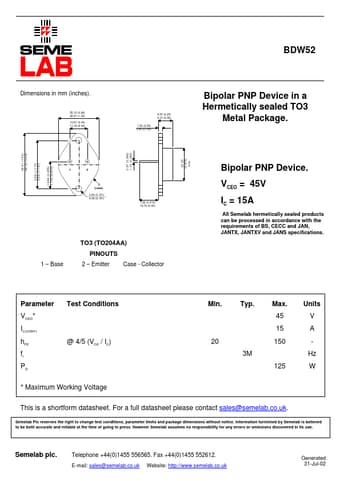

BDW52 Dimensions in mm (inches). 25.15 (0.99) 26.67 (1.05) 10.67 (0.42) 11.18 (0.44) 1.52 (0.06) 3.43 (0.135) 6.35 (0.25) 9.15 (0.36) Bipolar PNP Device in a Hermetically sealed TO3 Metal Package. 38.61 (1.52) 39.12 (1.54) 0.97 (0.060) 1.10 (0.043) 29.9 (1.177) 30.4 (1.197) 22.23 (0.875) max. 16.64 (0.655) 17.15 (0.675) 1 2 Bipolar PNP Device. VCEO = 45V 3 (case) 3.84 (0.151) 4.09 (0.161) 7.92 (0.312) 12.70 (0.50) IC = 15A All Semelab hermetically sealed products can be processed in accordance with the requirements of BS, CECC and JAN, JANTX, JANTXV and JANS specifications. TO3 (TO204AA) PINOUTS 1 – Base 2 – Emitter Case - Collector Parameter VCEO* IC(CONT) hFE ft PD Test Conditions Min. Typ. Max.
