BDW52B - Bipolar PNP Device

📥 Download Datasheet

Datasheet preview – BDW52B

Datasheet Details

Part number BDW52B
Manufacturer Seme LAB
File Size 10.25 KB
Description Bipolar PNP Device
Datasheet download datasheet BDW52B Datasheet
Additional preview pages of the BDW52B datasheet.

📁 Similar Datasheet

  • BDW52B - Silicon PNP Power Transistor (INCHANGE)
  • BDW52 - Silicon PNP Power Transistor (INCHANGE)
  • BDW52A - Silicon PNP Power Transistor (INCHANGE)
  • BDW52C - Silicon PNP Power Transistor (INCHANGE)
  • BDW52C - SILICON POWER TRANSISTOR (SavantIC)
  • BDW51 - NPN Transistor (INCHANGE)
  • BDW51A - NPN Transistor (INCHANGE)
  • BDW51B - NPN Transistor (INCHANGE)
  • BDW51C - SILICON POWER TRANSISTOR (SavantIC)
  • BDW51C - NPN Transistor (INCHANGE)
Other Datasheets by Seme LAB

Full PDF Text Transcription

Click to expand full text

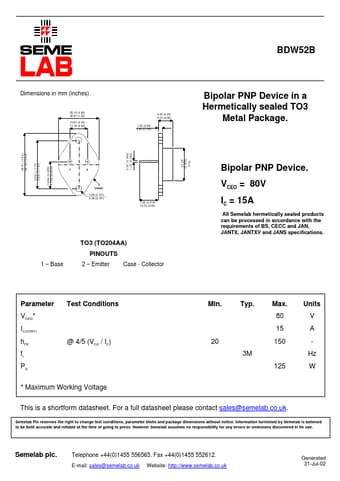

BDW52B Dimensions in mm (inches). 25.15 (0.99) 26.67 (1.05) 10.67 (0.42) 11.18 (0.44) 6.35 (0.25) 9.15 (0.36) 1.52 (0.06) 3.43 (0.135) Bipolar PNP Device in a Hermetically sealed TO3 Metal Package. 38.61 (1.52) 39.12 (1.54) 29.9 (1.177) 30.4 (1.197) 16.64 (0.655) 17.15 (0.675) 0.97 (0.060) 1.10 (0.043) 22.23 (0.875) max. 1 2 3 (case) 3.84 (0.151) 4.09 (0.161) 7.92 (0.312) 12.70 (0.50) 1 – Base TO3 (TO204AA) PINOUTS 2 – Emitter Case - Collector Bipolar PNP Device. VCEO = 80V IC = 15A All Semelab hermetically sealed products can be processed in accordance with the requirements of BS, CECC and JAN, JANTX, JANTXV and JANS specifications. Parameter VCEO* IC(CONT) hFE ft PD Test Conditions @ 4/5 (VCE / IC) * Maximum Working Voltage Min. 20 Typ. 3M Max.
